Discover cutting-edge smart water meters and leak detectors for residential and industrial use from Sensible Technologies. Revolutionizing how we manage water and energy resources.

Our Innovative Services

Explore our range of cutting-edge sensor technology services.

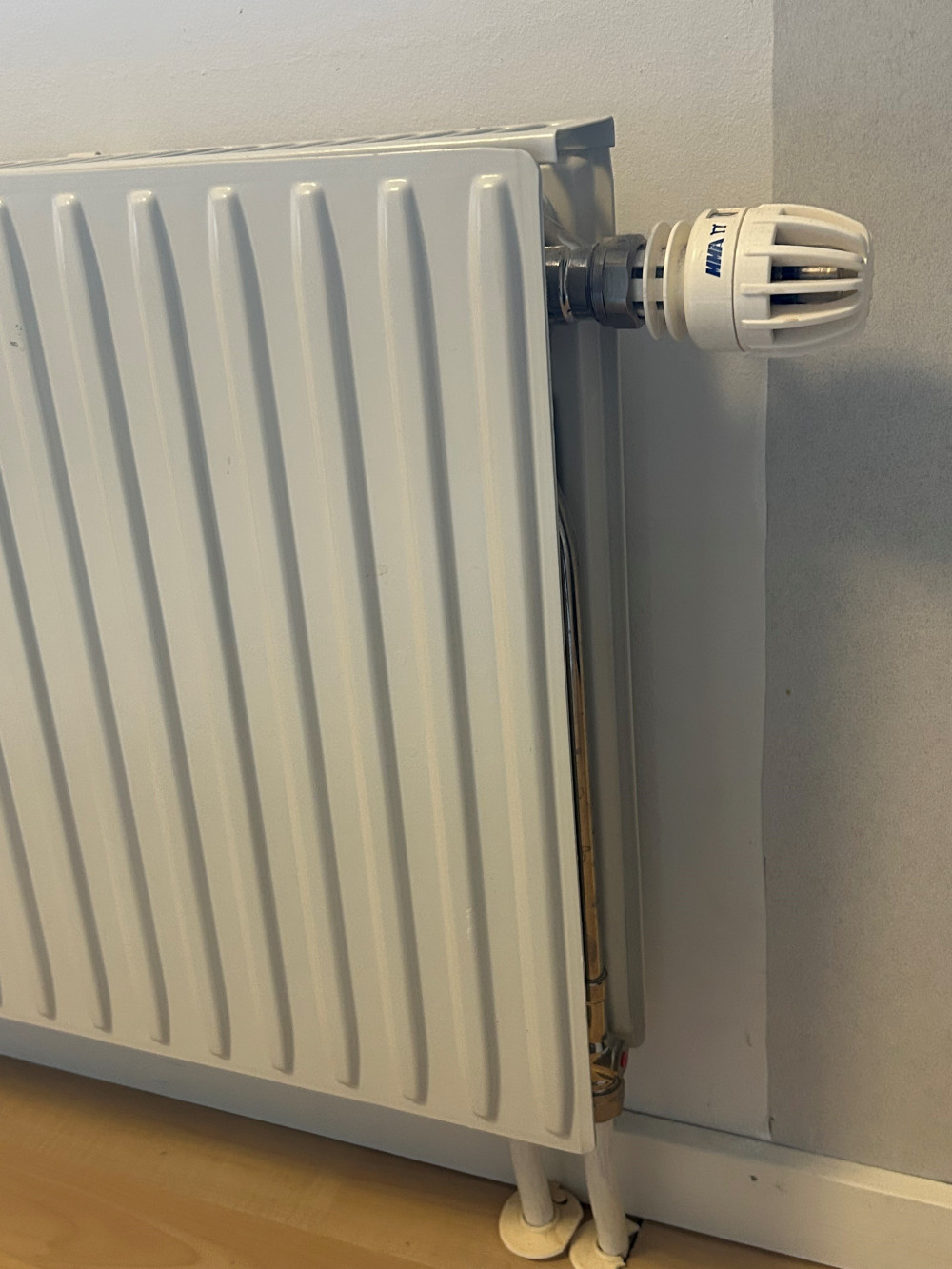

Flow meter for heating and cooling solutions

Flow and temperature metering for heating and cooling facilities

Flow meter for water consumption

Reliable detection for residential and industrial leak prevention.

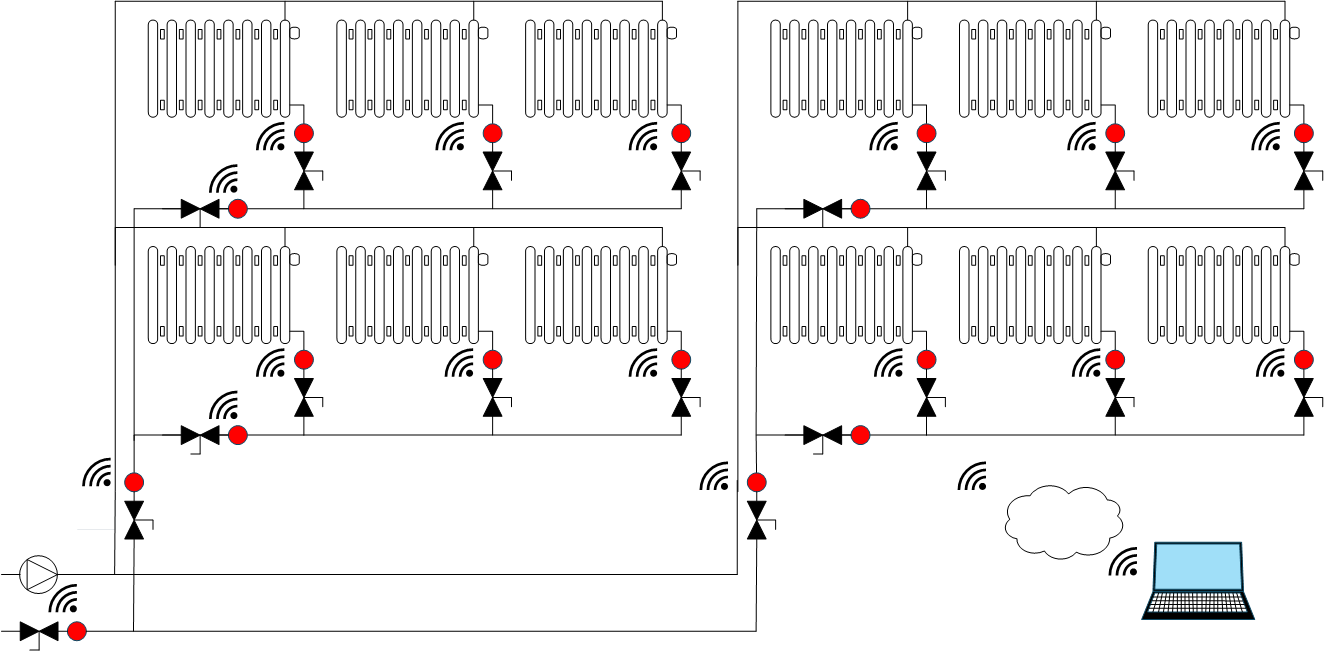

Flow and temperature meter for hydronic heat balancing

Our smart flow and temperature meter can be used as a input to hydronic balancing of heating and cooling solution in buildings. The non intrusive installation method makes the installation easy and fast. Flow data and temperature are available in real time from all meters used both when performing the adjustments and after. 4G cellular communication assures connection to the meters anywhere, anytime. Models for different pipe diameters enables measurements on main valves, riser valves, branch valves and terminal valves.

Flow meter for water consumption

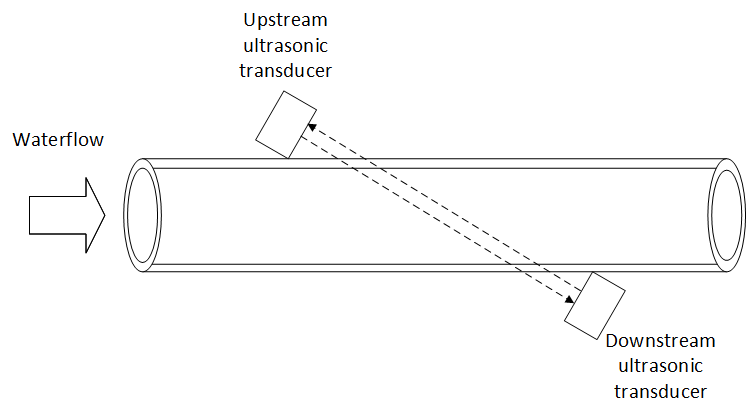

The principle of an ultrasonic water meter

Our water meter is based on an ultrasonic technology depicted below. Two ultrasonic transducers are used, both can transmit and receive ultrasonic waves. This makes it possible to measure two propagation times, one from upstream sensor to downstream sensor and one the other way around. As long as the water is standing still these both times are equal but as soon as the water begins to flow they will start to differ slightly. The water velocity is then proportional to this difference and for a specific pipe dimension the volume flow can be calculated.

Superscript

Technical data

This is a block description. To edit, click and type the text or replace it with your own custom content

Reference installations

Check out some of our installations.

school

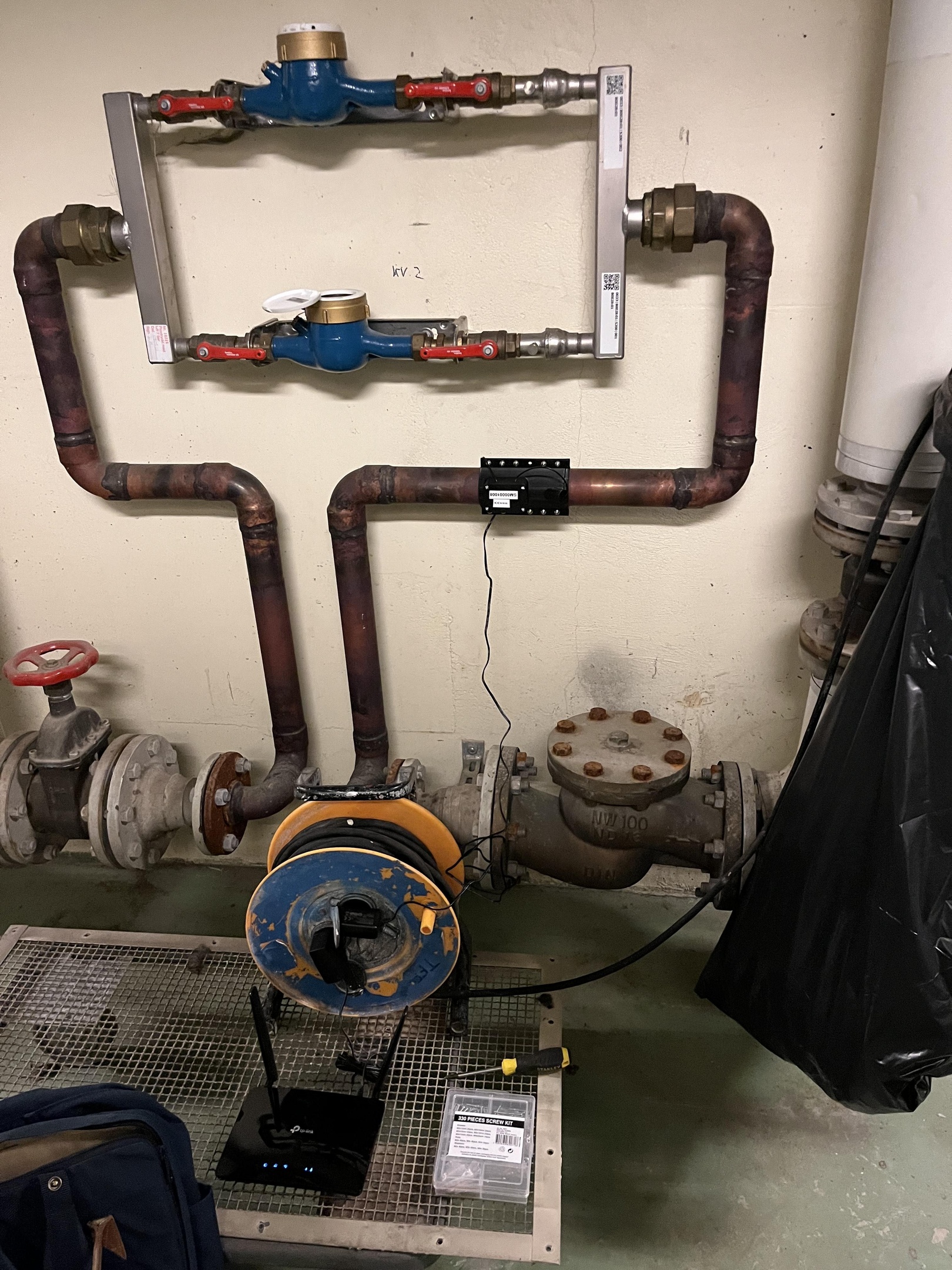

Two Smart water meters were installed at a school and followed constantly for unusual water use. Multiple times of over night water consumption were detected by automatic alarms.

Home

Smart water meters were installed at three different homes and followed.
